Heating Industry

Heating boiler is a kind of equipment to meet people's living needs in winter. The heating boiler equipments provided by ZOZEN are mainly for urban central heating, including large municipal city thermal pipe network central heating and regional boiler central heating. Centralized heating system in developed countries because of the good quality of the project, generally use small diameter high temperature hot water to convey heat, which can not only reduce energy consumption, but also save initial investment. In recent years, China's urban central heating industry has developed rapidly, initially completing the transformation and upgrading from decentralized small boiler room heating to central heating and cogeneration. Among them, urban heating in northern China is mainly hot water, starting from the improvement of people's livelihood, achieving the scale effect of central heating.

Heating Industry

Types and Specifications of Boilers Suitable for Heating Industry
QXX Series Circulating Fluidized Bed Hot Water Boiler
QXX Series Circulating Fluidized Bed Hot Water Boiler

Product Thermal Power: 58-116 MW

Working Pressure: 1.25-1.6 MPA

Output Water Temperature: 90/70℃, 150/130℃

Applicable Fuel: Coal, gangue, biomass, waste, sludge

Applicable industry: Centralized Heating

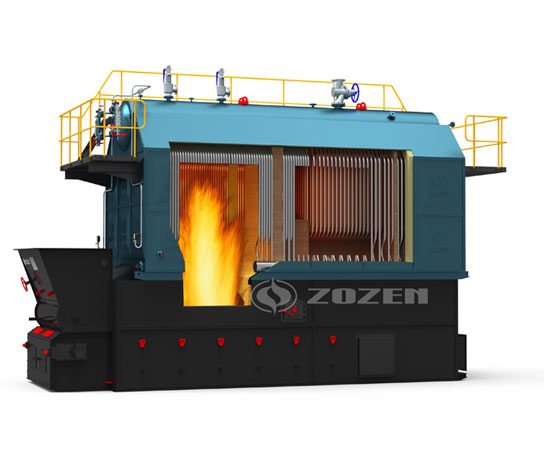

SZL Series Coal Fired Hot Water Boiler
SZL Series Coal Fired Hot Water Boiler

Thermal Power: 2.8-2.9MW

Working Pressure: 1.0-1.25 MPA

Output Water Temperature: 95/70℃, 115/70℃

Applicable Fuel: Bituminous Coal, Lean Coal, Anthracite

Applicable Industry: Heating, Hotels, Schools, Hospitals

SHX Series Circulating Fluidized Bed Steam Boiler
SHX Series Circulating Fluidized Bed Steam Boiler

Product Thermal Power: 10-75t/h

Working Pressure: 1.25-2.5 MPA

Output Water Temperature: 194-225℃

Applicable Fuel: Coal, Gangue, Biomass, Waste, Sludge

Applicable industry: heating, chemical, food, tobacco, textile, printing and dyeing, feed, medicine, building materials, wine, rubber, hospital

The heating area of a 1 ton boiler refers to the building area of a 1 ton boiler which can be heated every hour. The heat generated by a ton of boilers is 600,000 calories. According to the current national standard heating heat per square meter building (residential, office, hotel, etc.), the standard heating area of ZOZEN 1 ton hot water boiler is 10,000 square meters. Because the heating area of the boiler is also affected by building structure, height, thermal insulation and other factors, the above data are only used as a reference. As for the real heating area, field investigation is needed. The thermal insulation effect of new buildings is higher than that of previous buildings. Compared with traditional buildings, energy-saving and thermal insulation buildings have better effect.
