Different types of boiler (steam). The boilers are used in power plants for the generation of steam. They are crucial for the working of a power plant. They are mostly used in the power plants where steam turbines are used for the generation of electricity. The knowledge of boiler is very essential if you are a mechanical engineer.
What is a Boiler?
A boiler is a closed vessel which is used to convert the water into high pressure steam. The high pressure steam so generated is used to generate power.
Working Principle Of The Boiler
The boiler works on the same principle as the water is heated in a closed vessel and due to heating, the water changes into steam. This steam steam possesses high pressure kinetic energy.The boiler contains water. The water is heated to its boiling temperature by the use of heat from the furnace. Due to heating of water, it gets converted into high pressure steam. The steam generated is passed through the steam turbines. As the high pressure steam strikes the turbine, it rotates the turbine. A generator is attached to the turbine and the generator also starts to rotate with the turbine and produces electricity.
Different Types of Boiler
Boilers can be classified in different basis but here I am discussing the only important basis of boiler classification.
According to the Contents in the Tubes
According to the contents in the tubes, the boilers can be classified as fire tube boiler and water tube boiler.
1. Fire Tube Boiler:
In fire tube boiler the fire or hot gas are present inside the tubes and water surrounds these fire tubes. Since fire is inside the tubes and hence it is named as fire tube boiler. The heat from the hot gases is conducted through the walls of the tube to the water.
2. Water Tube Boiler:
In water tube boilers, the water is present inside the tubes and the fire or hot gases surrounds these water tubes.
According to the Number of Tubes
According to the no of tubes, the boilers are classified as single tube boiler and multitubular boilers.
1. Single Tube Boilers: The boilers which contain one fire tube or water tube are called as single tube boiler.
2. Multitubular Boiler: The boilers which has two or more water tube or fire tubes are called multi tubular boilers.
According to the Position of the Furnace
According to the position of the furnace, the steam boilers are classified as internally fired boilers and externally fired boilers.
1. Internally Fired Boilers: The boilers in which the furnace is located inside the boiler shell are called internally fired boilers. Among all the fire tube boilers, most of the boilers are internally fired boilers.
2. Externally Fired Boilers: In externally fired boilers, the furnace is located outside the boiler shell. In this the furnace is arranged underneath in brick work setting. Water tube boilers are always externally fired boilers.
According to the Axis of the Shell
According to the axis of the shell, the boilers are classified as vertical boilers and horizontal boilers.
1. Vertical Boilers: the in which the axis of the shell is vertical are called vertical boilers.
Examples of vertical boilers are: simple vertical boiler and Cochran boiler.

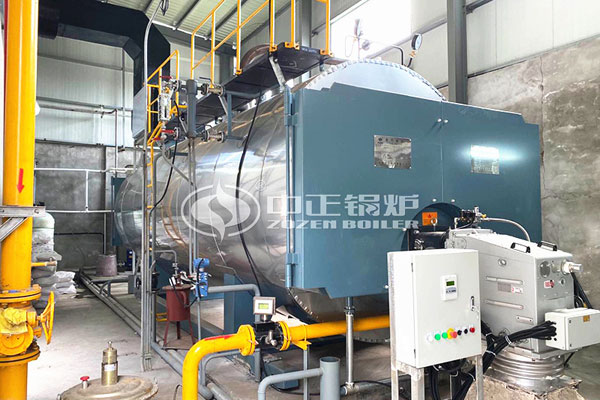

2. Horizontal Boilers: when the axis of the shell in a boiler is found horizontal than it is called as horizontal boiler.
According to the Methods of Circulation of Water and Steam
According to the method of circulation of water and steam, the steam boilers are divided into natural circulation boilers and forced circulation boilers.
1. Natural Circulation Boilers: In natural circulation boilers, the circulation of water takes place naturally by the convection currents that set ups during the heating of water.
2. Forced Circulation Boilers: In this type of steam boilers, the water circulation takes place with the help of a centrifugal pump driven by some external power. Here the circulation is forced by some external agency.
