Description

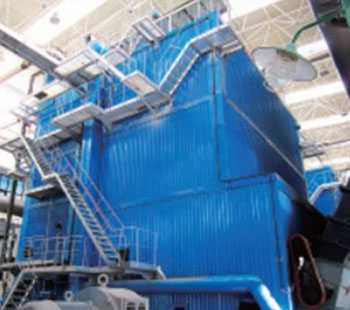

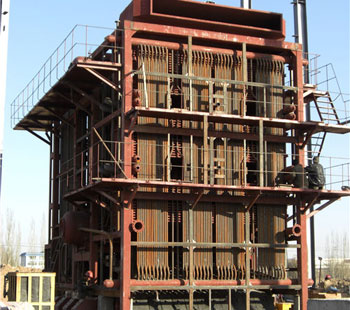

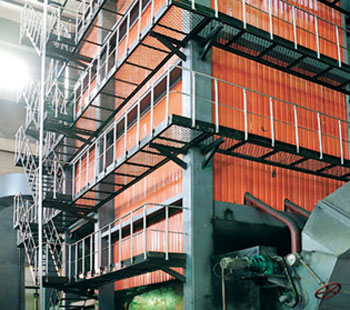

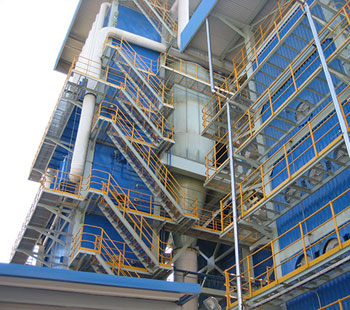

The corner tube boiler uses a piping system as the skeleton of the entire boiler, and it bears the full load of the boiler, which makes a non-framework boiler. At the same time, this skeleton also serves as the down tube of the boiler and upper and lower headers. The boiler drum is an external type drum, the furnace is a fully enclosed membrane wall structure, the convective heating surface adopts the flag structure. The corner boiler has the advantages of compact structure, low steel consumption and rapid temperature increase, which makes the boiler very popular. The boiler is field assembled boiler.
Technical advantages
1. The boiler adopts a unique water circulation structure, the drum is free from heat and the heated water flows in one direction.
2. body weight is supported by membrane water wall and down tube, and all membrane walls are all welded into one whole, with good anti-seismicity.
3. The upper part of the boiler can be divided according to the size of the railway transportation limit.
